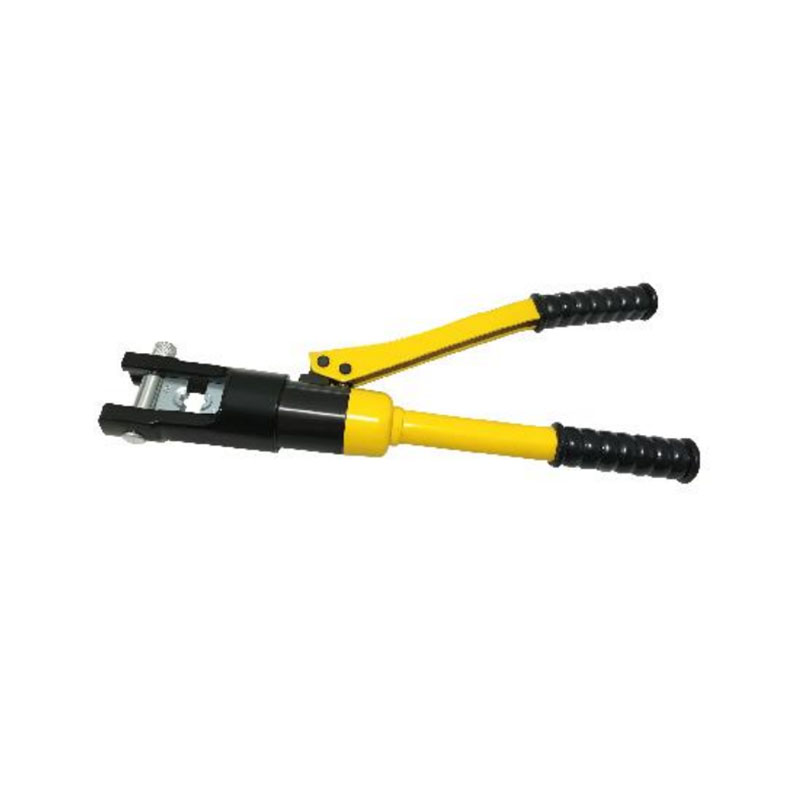

YQK Series 4-400mm² Cable Terminal Integrated Hydraulic Crimping Tool

The YQK Series 4-400mm² Cable Terminal Integrated Hydraulic Crimping Tool is a versatile and efficient piece of equipment designed for the professional electrical industry. It is engineered to meet the demands of high-quality crimping for a wide range of cable terminals, adhering to various international standards such as DIN, AWG, and JIS. Here's a detailed introduction to its features and capabilities:

1. Compatibility with International Standards: The tool is designed to work with a broad spectrum of cable sizes and types, making it suitable for different applications across the globe. It can handle terminals that conform to the specifications set by the German Industrial Standard (DIN), the American Wire Gauge (AWG), and the Japanese Industrial Standard (JIS), ensuring that it is a versatile tool for international use.

2. High and Low Pressure Safety Mechanism: The tool is equipped with a safety feature that provides an audible "click" sound when the high or low pressure is reached during the crimping process. This not only ensures that the crimping is done correctly but also serves as a safety mechanism to prevent over-crimping, which can damage the cable or terminal.

3. Efficiency in High-Altitude Operations: The design of the tool allows for single-person operation even in high-altitude settings. This feature saves time and labor costs by eliminating the need for additional personnel to assist in the crimping process at elevated heights.

4. Integrated Pump Design: The pump and the crimping head are integrated into a single unit, which simplifies the overall design and makes the tool more portable. This design also allows the crimping head to rotate 180 degrees, providing greater flexibility and ease of use in various working positions.

5. Ease of Use: The tool is designed with user convenience in mind. Its ergonomic design reduces fatigue during extended use, and the controls are intuitive, allowing for quick and easy operation even for those with minimal training.

6. Durability and Reliability: Constructed with high-quality materials, the YQK Series is built to last. It can withstand the rigors of daily use on construction sites, in electrical workshops, and other demanding environments.

7. Maintenance and Service: The tool is designed to be low-maintenance, with easy-to-replace parts and a service-friendly design. This ensures that downtime for repairs is minimized, keeping the tool in service and contributing to the efficiency of the work process.

8. Versatility in Applications: Beyond just crimping, the tool can be used for a variety of tasks, including the termination of electrical connectors, splicing of large cables, and the assembly of electrical contacts for switchgear and other equipment.

9. Safety Features: In addition to the pressure safety mechanism, the tool includes other safety features such as slip-resistant grips and a secure locking mechanism to prevent accidental activation.

10. Efficient Power Source: The hydraulic system is designed for efficient power transfer, ensuring that each crimp is as strong and secure as possible. This leads to a higher quality connection and reduced risk of failure in the field.

11. Portability: Despite its power and functionality, the YQK Series is designed to be portable, allowing workers to move easily between different work sites or within a large work area without being weighed down by bulky equipment.

The YQK Series 4-400mm² Cable Terminal Integrated Hydraulic Crimping Tool is a powerful, safe, and efficient tool that meets the needs of professionals in the electrical industry. Its design and features make it a reliable choice for high-quality crimping work that adheres to international standards.

Model:YQK-70（Safety valve inside）
Crimping Range	Cu 4-70mm²
Crimping Force	6T
Crimping Type	Hexagon Crimping
Stroke	10mm
Length	310mm
Weight	2.8kg
Package	Plastic Case
Standard Accessories: 4、6、10、16、25、35、50、70mm²

Model:YYQ-120（Safety valve inside）
Crimping Range	Cu 10-120mm²
Crimping Force	8T
Crimping Type	Hexagon Crimping
Stroke	14mm
Length	425mm
Weight	4kg
Package	Plastic Case
Standard Accessories: 10、16、25、35、50、70、95、120mm²

Model:YOK-240（Safety valve inside）
Crimping Range	Cu 16-240mm²
Crimping Force	12T
Crimping Type	Hexagon Crimping
Stroke	22mm
Length	500mm
Weight	6.3kg
Package	Plastic Case
Standard Accessories: 16、25、35、50、70、95、120、150、185、240mm²

Model:YQK-300（Safety valve inside）
Crimping Range	Cu 16-300mm²
Crimping Force	13T
Crimping Type	Hexagon Crimping
Stroke	22mm
Length	500mm
Weight	6.5kg
Package	Plastic Case
Standard Accessories: 16、25、35、50、70、95、120、150、185、240、300mm²

Model:YQK-400C（Safety valve inside）
Crimping Range	Cu 16-400mm²
Crimping Force	16T
Crimping Type	Hexagon Crimping
Stroke	24mm
Length	600mm
Weight	11.5kg
Package	Plastic Case
Standard Accessories: 16、25、35、50、70、95、120、150、185、240、300、400mm²
